• At present, when welding robots are welding medium - thick plates,

due to the workpiece blanking or inaccurate assembly, the welding points (arc starting point, intermediate point, and end point) are inaccurate,

causing the deviation of the welding bead.

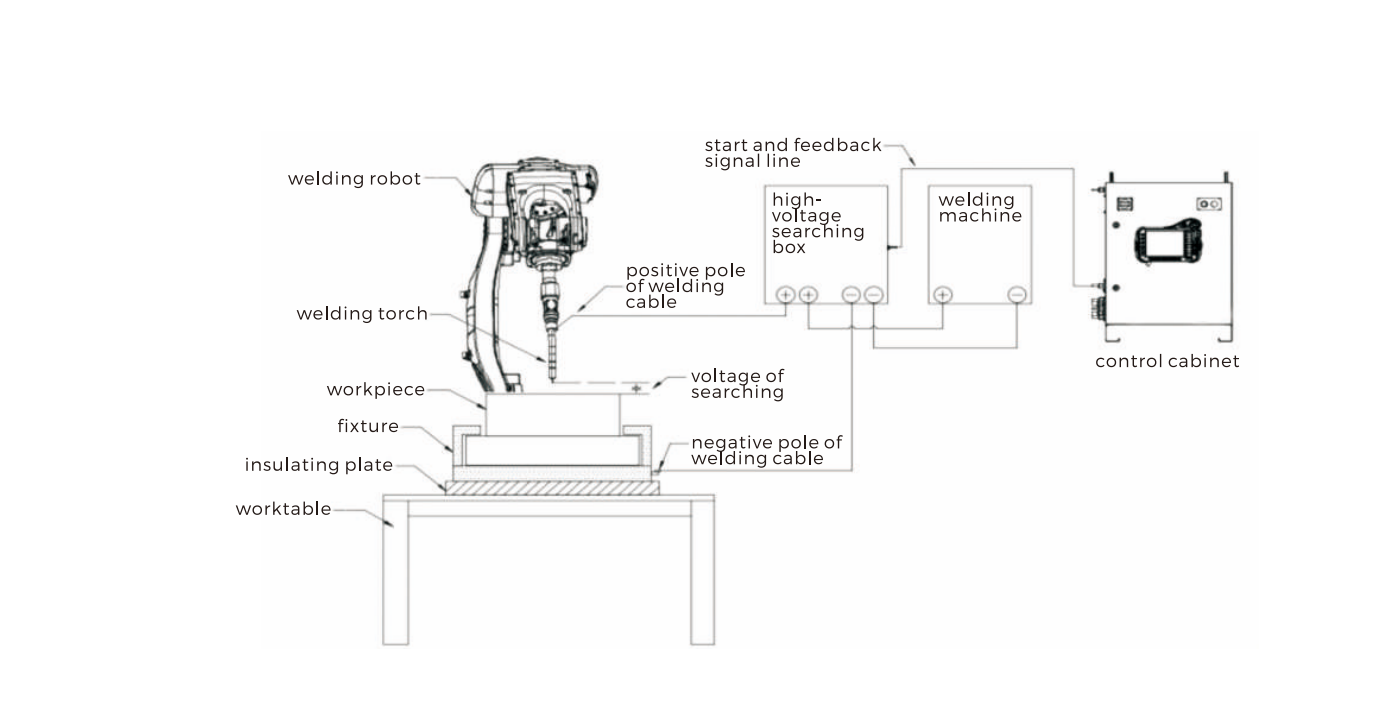

• This equipment cooperates with the welding robot's welding wire locating function,

feedbacks the signal that the welding wire hits the workpiece, the robot automatically calculates the position deviation,

corrects the position point, and enables the robot to find the actual welding point.

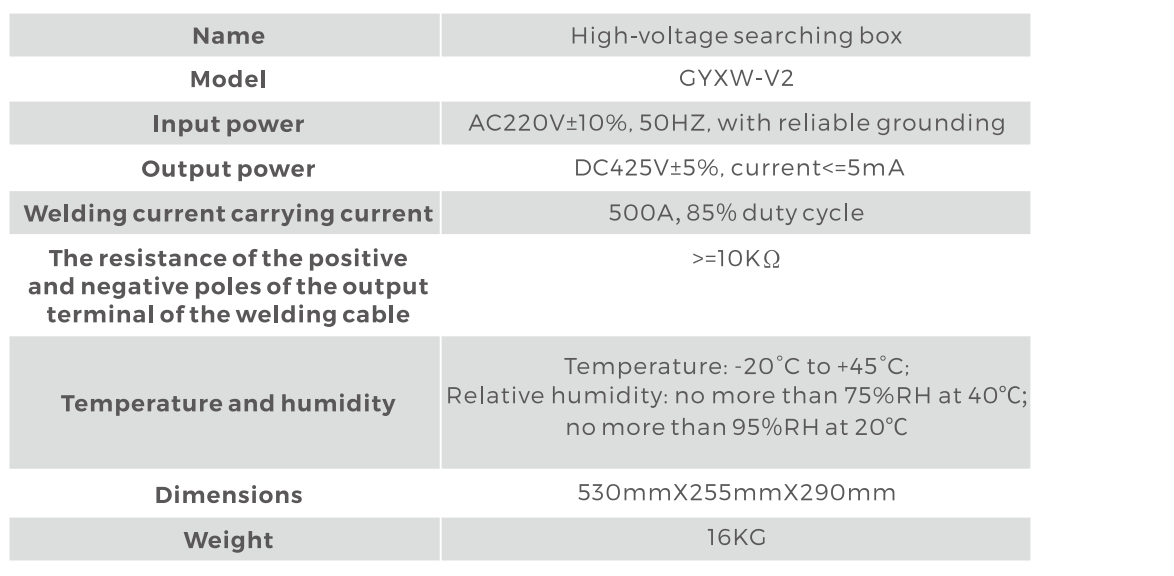

• The output voltage is about 425V±5%, which can effectively penetrate oil stains, rust stains, and water stains; Fast searching speed;

• The current limit design has been made internally, which can effectively control the current that is lower than the safety current of the national standard;

• During searching, since the welding cable is disconnected from the welding machine, the voltage will not enter the welding machine, so it will not damage the welding machine.
