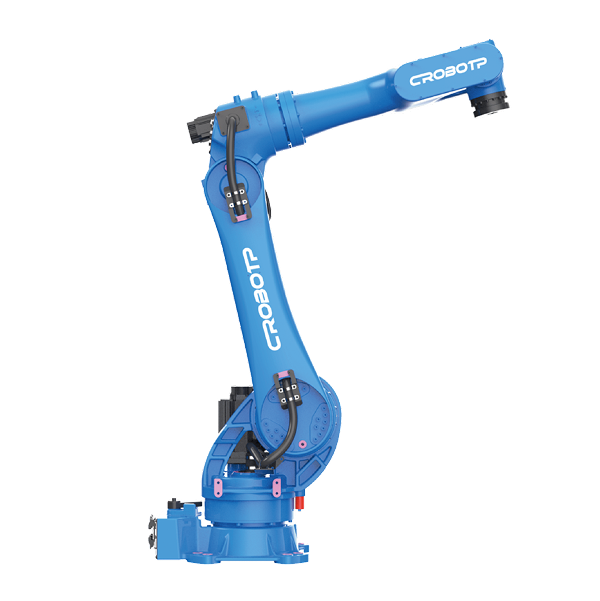

CRP-RA21-50
Describe
FUNCTIONAL FEATURES
  • Arm span of 2.13m, strong load capacity, large working range and high flexibility. Fast operation speed, repeated positioning accuracy, suitable for handing, assembly, grinding and other scenarios.

  • Built-in cables and trachea to reduce external interference, more convenient for customers to use and improve operation efficiency.

  • The safety emergency stop board independent of the control system is configured, and the imported forced disconnect relay is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

  • Built-in three-phase filter to effectively isolate external interference and prevent internal interference output.

  • The body provides dual air pipes to meet the needs of transportation.

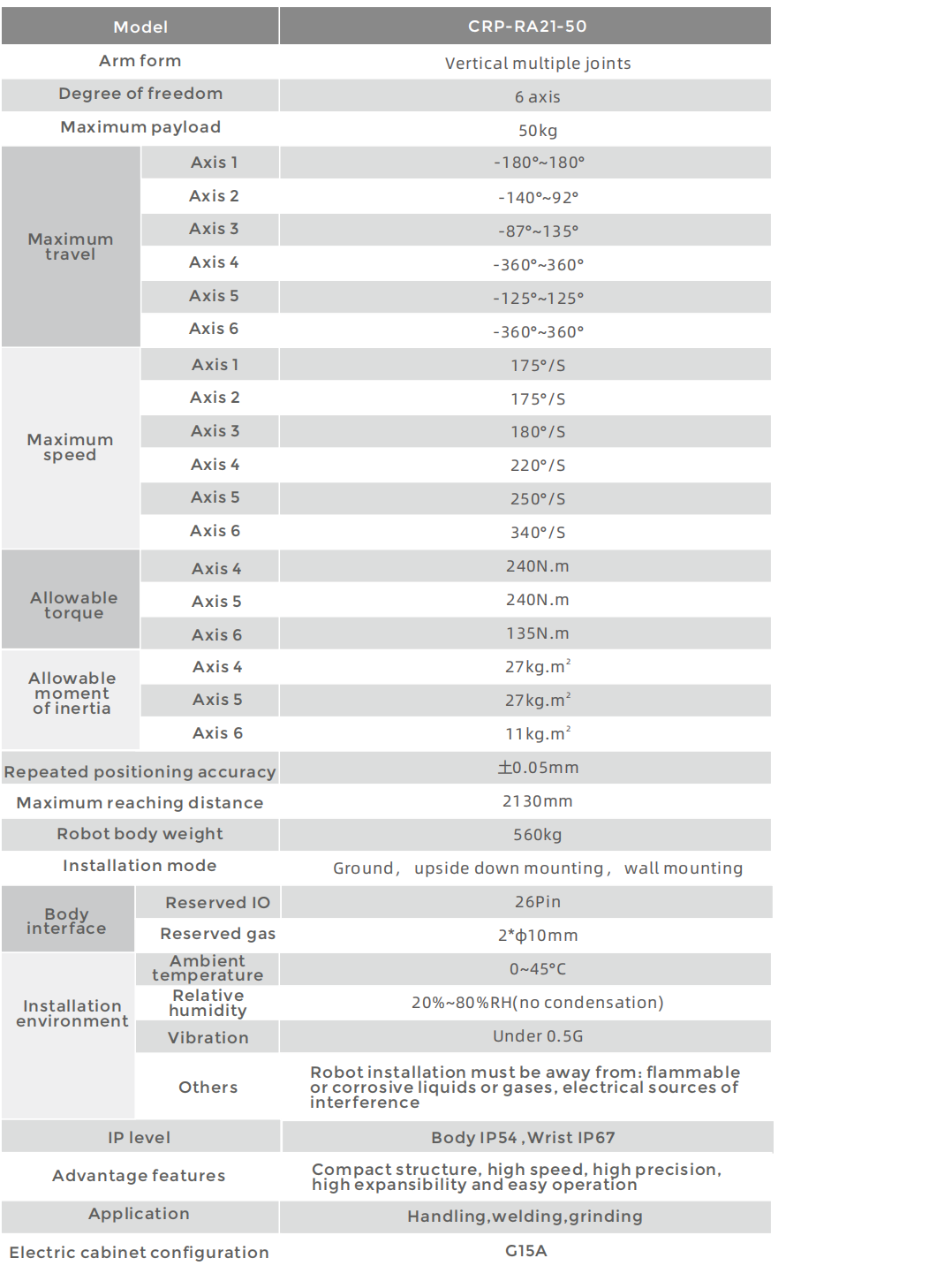

ROBOT BODY TECHNICAL PARAMETERS

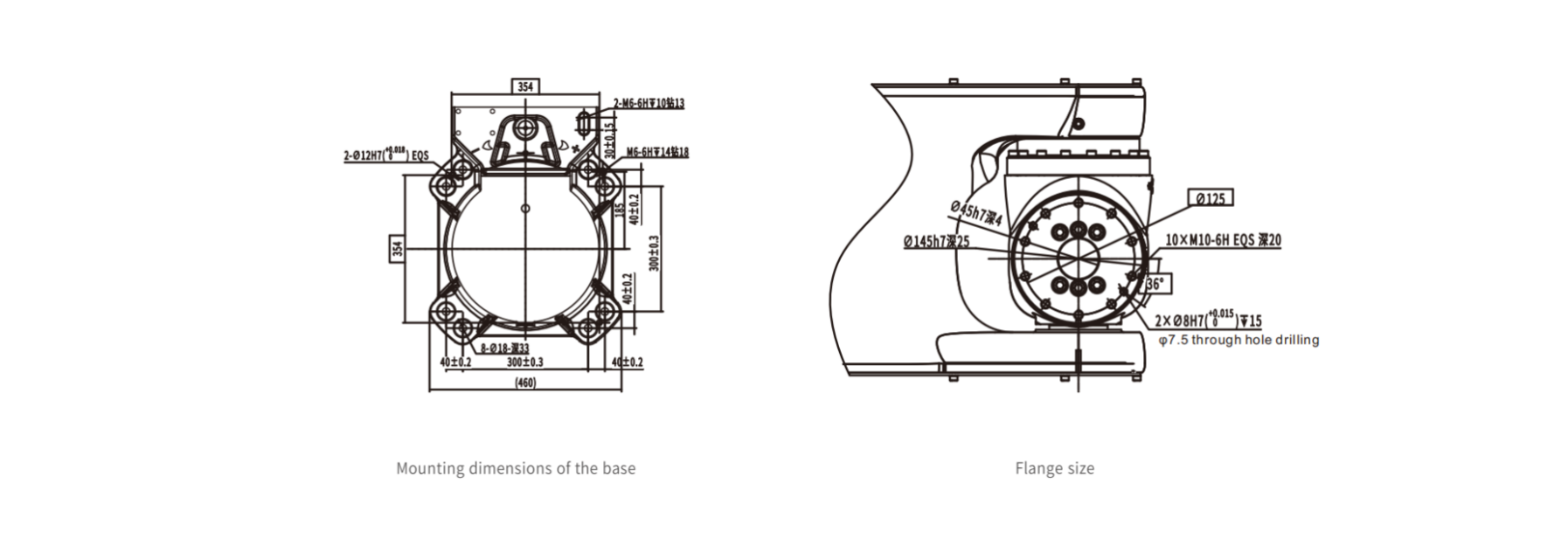

INSTALLATION INTERFACE DIAGRAM

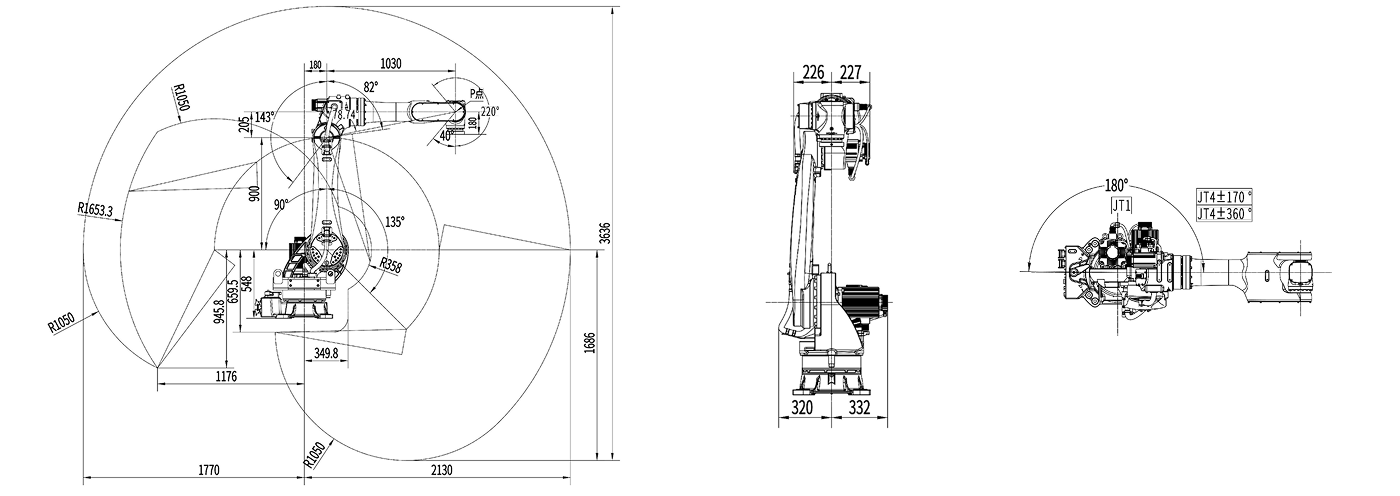

MOTION RANGE DIAGRAM
