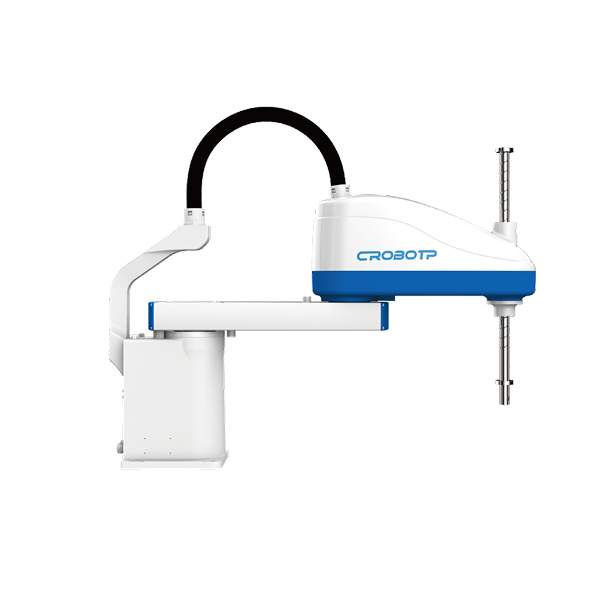

Unique high rigidity arm design, fast running speed, high transmission accuracy, low noise.

Available in 1000mm arm lengths with a maximum payload of 20kg.

A safety emergency stop board independent of the control system is configured, and a safety relay is used to provide double-circuit emergency stop to ensure the reliability of emergency stop.

Equipped with G12 control cabinet, providing 24-way custom IO; Supports serial port, network port, USB and other interfaces.

The body cable adopts the special cable for flexible robot. Built-in three-phase filter, effectively improve EMC and EMI performance, with gravity compensation, load adaptive, and S-T function, higher accuracy, less impact, typical working conditions faster beat.
